The new Gen-Eye Hot-Spot pipe locator makes locating easy. Its total field antenna array and on-screen icons lead you right to your target, without the long learning curve
Whether youre an experienced pro or a first time user, you can quickly locate inspection cameras, sondes, active power lines and utility lines with pinpoint accuracy.

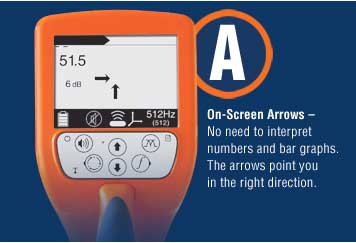

No need to interpret numbers and bar graphs.
The easy-to-see auto backlit LCD display shows you the way with arrows that point you in the right direction every time. Utility line location and active buried power line locating is just as easy.
The Hot-Spot is the industrys most rugged pipe locator. Rated at IP65, it is dust and dirt proof, and water resistant. It passed the one meter drop test and the screen passed the 18 steel ball drop test.
Depth Range:
10 ft. in cast iron pipe/20 ft. in clay or plastic
Camera/Sonde Frequencies:
512 Hz and 33KHz
Line/Utility Frequencies:
1KHz, 8KHz, 33KHz, 65KHz
Active Power Line Frequencies:
60/50Hz and 180/150Hz
Screen:
LCD Digital Signal Read-Out, Graphic Display, Directional Arrows, Null Icon, Camera Icon, Utility Icon, Audible Tone, Auto Digital Depth, Battery Status, Auto Backlight
